660mm Bundled Wire Conductor Pulley Stringing Block

Ningbo Lingkai Electric Power Equipment Co., Ltd.

660mm Bundled Wire Conductor Pulley Stringing Block

  • 1
  • 2

Brand Name : Linkai

Model Number : 660 mm

Certification : ISO CE

Place of Origin : Ningbo china

MOQ : 10sets

Price : get the latest

Payment Terms : T/T, L/C, Western Union

Supply Ability : 3000sets/month

Delivery Time : 3-5 work days

Packaging Details : std exported packing

Model : 660 MM stringing block

Sheave : 1,3,5

Rated load : 60KN

Weight : 150kg

Material : MC nylon sheave

Item : Stringing block

Contact Now

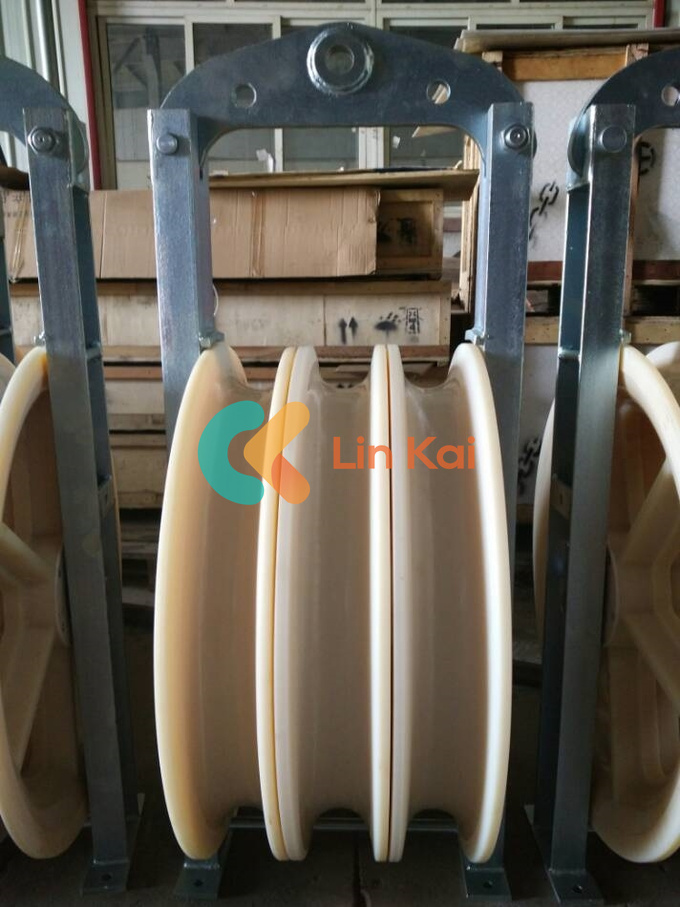

660mm Diameter Wheels Sheaves Bundled Wire Conductor Pulley Stringing Block

660 mm stringing blocks

Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort. 1.Maximum suitable conductor ACSR500 2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm) 3.Sheave dimension Φ660×Φ560×110(mm) can be customized

Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features
10121 SHD660 1 20 30 Rubber lined aluminium sheave
10122 SHS660 3 40 100

Middle : Cast steel sheave

Conductor : Rubber lined aluminium sheave

10123 SHW660 5 60 150
10124/10124A SHDN660 1 20 26 MC nylon sheave
10125 SHSLN660 3 40 86

Middle : MC nylon sheave

Conductor : Rubber lined aluminium sheave

10126 SHWLN660 5 60 120
10127/10127A SHSQN660 3 40 70 MC nylon sheave
10128/10128A SHWQN660 5 60 110
10130 SHQ660A 7 75 190

Middle :cast steel sheave

Conductor : MC nylon sheave

Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead transmission line construction.

Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner or strengther nylon wheel with PU liner.
